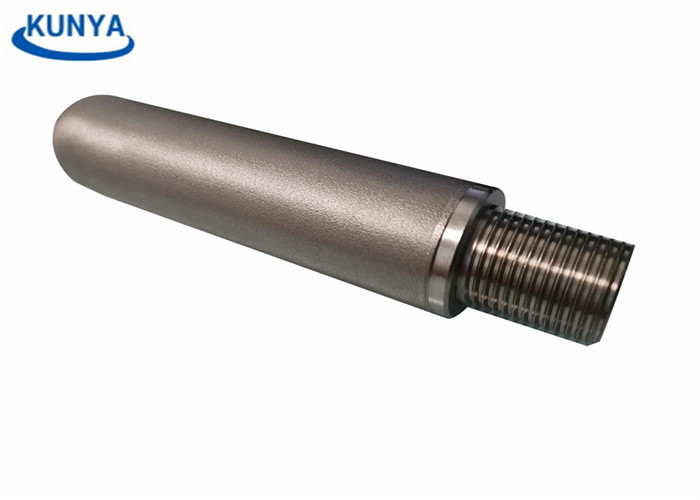

SUS304 10um Porous Metal Filter Cartridge Sintered Bronze Filter Element

Product Categories
Anping County Kunya Wire Mesh Products Co., Ltd.
Contact Now

SUS304 10um Porous Metal Filter Cartridge Sintered Bronze Filter Element

Brand Name : KUNYA

Model Number : KYF-21129A

Place of Origin : CHINA

MOQ : 1 Piece

Price : USD$1.95-USD$35.65

Payment Terms : T/T, Western Union

Supply Ability : 165200 Pieces per month

Delivery Time : 25 days

Packaging Details : wooden case

Product name : Sintered Powder Filter Cartridge

Filter rating : 0.2um-500um

Shape : customized

Thickness : 1-5mm

Color : stainless steel, bronze

Application : Chemical Industry

Working temperture : -200℃-600℃

Material : Stainless steel, Titanium,Bronze

Advantage : long life span

Length : 5-1000mm

Contact Now

High Temperature Resistance Stainless Steel Sintered Powder Filter Cartridge

Sintered Powder Filter Cartridge Introductions

Sintered metal powder filter elements, also called sintered metal porous filters, adopt stainless steel 304, 304L, 316, 316L powder as raw materials and then produced through sizing, molding and sintering processes. Because of stainless steel material, so the sintered metal powder filter elements are also known as sintered stainless steel powder filter element.

Sintered Powder Filter Cartridge can be made into tube type and plate type. Because of the good permeability, filter fitness and high stock utilization, they are widely used in medical industry, chemical industry, metallurgical industry and field of gas purification.

Name
SUS304 316 316L SS sintered porous metal filter sheet thickness 100micron filtration
Material
304 316 316L, copper, titanium, or customized
Filtration accuracy
10um (can be customized according to requirements)
Application
environmental protection, petroleum, natural gas, chemical, environmental detection, instrumentation, pharmaceutical equipment
and other fields


Sintered Powder Filter Cartridge Uses

Material
Pure titanium/316L powder
Filter Rating
0.5um-50um
Porosity
30-45%
Penetrability
3-800M³/M²hKPa
Working pressure
2.0MPa
Operating temperature
300℃
Shape
Disc,sheet,tube,round bar,cap
Specific surface area
10-40cm²/cm³

Sintered Powder Filter Types

Name
Filter rating 5-70um sintered powder porosity tube metal filter
Production
Diameter (Width)
Thickness
Customized
Sintered porous round discs
φ5-φ400mm
φ5-φ400mm
1-20mm
Yes
Sintered porous sheets
5-600mm
5-400mm
1-20mm
Yes
Sintered porous tubes
100-1200mm
φ20-φ200mm
1-10mm
Yes
Sintered porous cartridge
100-1200mm
φ20-φ200mm
1-10mm
Yes

SUS304 10um Porous Metal Filter Cartridge Sintered Bronze Filter ElementSUS304 10um Porous Metal Filter Cartridge Sintered Bronze Filter ElementSUS304 10um Porous Metal Filter Cartridge Sintered Bronze Filter Element

SUS304 10um Porous Metal Filter Cartridge Sintered Bronze Filter Element

SUS304 10um Porous Metal Filter Cartridge Sintered Bronze Filter Element

SUS304 10um Porous Metal Filter Cartridge Sintered Bronze Filter Element
