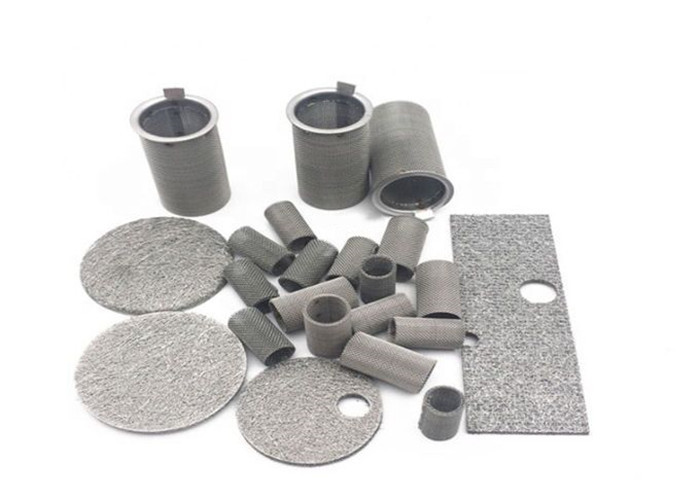

Various Sizes 1-300 Micron Multilayer Stainless Stee Sintered Mesh Filter Disk
Sintered Mesh Filter Descriptions:
The multi-layer metal sintered mesh is a new type of filter material with high mechanical strength and overall rigidity by vacuum lamination using a multi-layer stainless steel wire mesh. The holes of each layer of the mesh for producing the sintered mesh filter are interlaced to form an accurate and uniform filtering structure, and the material has high strength, good rigidity, stable mesh shape and the like. Due to the reasonable matching and design of the material's void size, permeability and strength characteristics, it has excellent filtration accuracy, filtration resistance, mechanical strength, wear resistance, heat resistance and processability. Better than other types of filter materials.
Standrad Sintered Mesh consists five layers:the protctive layer,the filter layer, the dispersion layer, two reinforcing meshes.Owing to its surface filtration construction,and smooth wire of the mesh,it is good at backwashing andregeneration. Futhermore,this mesh is easy to be formed,machined and welded. It can be produced into many kinds of shapes such as circular,cartridge,cone and pleats.
Sintered Mesh Filter Characteristics:
| Materials | SS316L, 904L,Monel,Inconel, Alloy20, Duplex |
| Features | Easy cleaning, especially bak washing owing to the surface.Good permeability
High mechanical strength , excellent resistance to pressure ang high mechanical strength due to the fourth and fifth layers reinforced.
good corrosion resistance
Durable at work
No immigration of materials.
Heat resistant up to 350℃ |
| Application | Polyester oil products
chemical industrial products
pharmaceutics
water and gas
food and beverage.
|
Sintered Mesh Filter Connection Type
* Standard interface, such as 222, 220, 226
* Fast interface
* Flange connection
* Tie rod connection
* Threaded connection
* Customized connection
Sintered Mesh Filter Advantages:
1) high flow, high precision
2) high porosity, permeability, pressure drop very low
3) excellent mechanical strength, resistance to high pressure up to 200Kg
4) easy to clean, backpulsing
5) corrosion resistance, high temperature resistance
6) good processing performance, folding, welding, adhesive
7) design flexibility
8) 80-200l/min - rated flow; working pressure 1.5-2.5pa; filtering area (M2) 0.01-3.0; (m) 2-200. filtering accuracy
Main Features
1) The standard multi-layer metal sintered mesh network consists of a protective layer, a precision control layer, a dispersion layer and a multi-layer reinforcement layer;
2) High strength: After the multi-layer screen is sintered, it has extremely high mechanical strength and compressive strength;
3) High precision: uniform surface filtration performance can be achieved for the filtration particle size of 1-300um;
4) Heat resistance: resistant to continuous filtration from minus 200 degrees to 650 degrees;
5) Cleanability: Due to the excellent surface cleaning structure with excellent countercurrent cleaning effect, the cleaning is simple.
Product Tags:
|
|

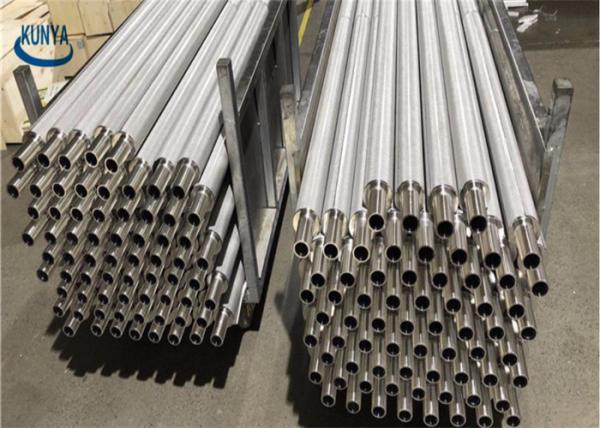

1 Micron Multilayer Stainless Sintered Metal Filter Elements Disk Images
|
