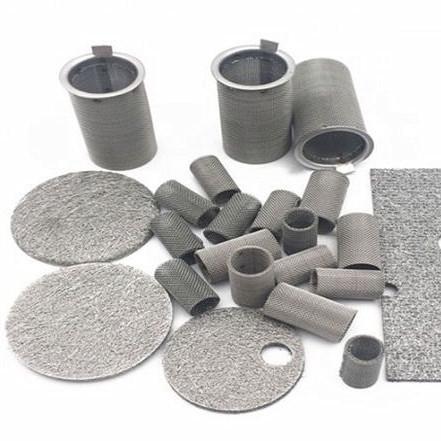

1.7mm Thickness 550 Degree Sintered Titanium Fiber Felt

Features of sintered metal felt filter media

• High heat and corrosion resistance: Work temperature resistance can reach 1000 °C, and stainless steel or alloy for corrosive application, which non-metallic textile, ceramic or polymer product can not compete.
• High porosity: It performs with up to 85% high porosity, long on-stream lifetime, high flow rates.
• Low pressure drop: The high porosity allows a very low pressure drop, lower energy cost at the same time.
• Depth filtration: It enables you to achieve high efficient result through surface filtration and its high dirt capacity offers depth particles capture.
• Enhanced gel removal: Addition of metal fiber felt enhances gel removal property of sintered filter media and eliminates fiber breaks during spinning.
• Longer life: Stainless steel fiber felt is added into sintered filter media, onstream life can be increased by a factor of two to three times that of conventional wire mesh media.

sintered metal felt filter media Specification

• Material: 316L stainless steel, 316 stainless steel , 304 stainless steel, nickel.
• Absolute filter rating: For liquids - 1µm to 80µm, for air and gases - below 0.1 µm is possible.
• Standard size: 500 mm × 1000 mm, 600 mm × 1000 mm, 600 mm × 1200 mm, 1000 mm × 1000 mm, 1000 mm × 1200 mm, 1000 mm × 1480 mm, 1180 mm × 1450 mm, 1180 mm × 1500 mm.
• Maximum size: 1500 mm × 1800 mm.
•
• Technical Date:
  Specification - standard metal fiber felt

  Type	Filter rating (μm)	Bubble point pressure (Pa) ±8%	Air permeability (L / min dm2) ±10%	Porosity (±5%)	Dirt holding capacity (mg/cm2) (±10%)	Thickness (mm) (±10%)	Breaking strength (MPa) (±10%)
  SSMF5	5	6800	47	75	5.0	0.30	32
  SSMF7	7	5200	63	76	6.5	0.30	36
  SSMF10	10	3700	105	77	7.6	0.37	32
  SSMF15	15	2600	205	80	8.0	0.40	23
  SSMF20	20	1950	280	81	15.5	0.48	23
  SSMF25	25	1560	355	80	18.4	0.62	20
  SSMF30	30	1300	520	80	25.0	0.63	23
  SSMF40	40	975	670	78	25.9	0.68	26
  SSMF60	60	650	1300	87	35.7	0.62	28

  High pressure type of fiber felt specification

  Type	Filter rating (μm)	Bubble Pressure (Pa)	Air Permeability (L/min dm2)	Porosity (%)	Dirt holding capacity (mg/cm2)	Thickness (mm)	Breaking Strength (MPa)
  SHP-20	20	2050	280	82	18	0.68	33×+20%
  SHP-25	25	1500	350	80	20	0.66	30×+20%
  SHP-30	30	1240	500	78	27	0.61	32×+20%
  SHP-40	40	960	650	78	35	0.61	36×+20%

  Main Application:
  1.Polyester melt filtering in Chemical and Membrane Industry
  2.High temperature filtration and corrosion liquid filtration in Petroleum industry
  3.Hydraulic fuel and lubrication oil filtration in Mechanical Equipment
  4.Liquid purification in Pharmacy,beverage and etc.
  Advantages :
  1.High dirt holding capacity,high filtering accuracy,long working time
  2.Corrosion resistance of acid and alkali,long working time at 600°C.
  3.High porosity and excellent permeability,low pressure loss,high flow
  4.Could be pleated in order to enlarge the filter area and welded
  5.Cleanable,be used for many times(back wash)
